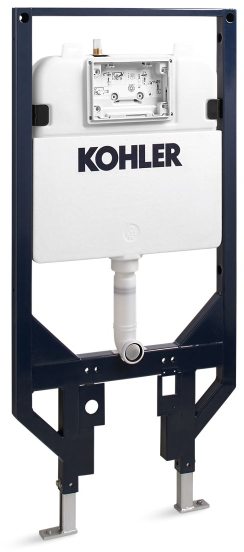

INWALL TANK W/ IRON RACK

186179 MFG #: K-18829-NA
$0.00 / ea
Stock Product
INWALL TANK W/ IRON RACK
  • Applicable Standard: ASME A112.6.2/A112.19.14
  • Brand: Kohler
  • End Connection: Threaded
  • Face Plate to Finished Wall Dimension: 3-3/16"
  • Frame Type: Stud-Mount
  • Inclusions/Features: Installation and Rough-In Material
  • Inlet Size: 1/2"
  • Line: KOHLER
  • Maximum Adjustable Height: 23"
  • Minimum Adjustable Height: 15"
  • Mounting Configuration: Double
  • Mounting Type: Vertical
  • Number of Inlets: 1
  • Number of Outlets: 1
  • Overall Horizontal Dimension: 23-1/4"
  • Overall Vertical Dimension: 46-1/4"
  • Product Type: TOILET TANK AND CARRIER SYSTEM
  • Type: Adjustable
QTY
Add to List
  • FEATURES BENEFITS
  • LONG DESCRIPTION
Water Consumption, Dual-Flush Actuator; Insulated to Prevent Sweating; Lifetime Limited Warranty
Tank and Carrier System; Type Adjustable; Inlet Size 1/2"; End Connection Threaded; Number of Inlets 1; Number of Outlets 1; Minimum Adjustable Height 15"; Maximum Adjustable Height 23"; Overall Vertical Dimension 46-1/4"; Overall Horizontal Dimension 23-1/4"; Face Plate to Finished Wall Dimension 3-3/16"; Mounting Type Vertical; Mounting Configuration Double; Frame Type Stud-Mount; Inclusions/Features Installation and Rough-In Material; Applicable Standard ASME A112.6.2/A112.19.14; Frame Material Steel; Flush Volume 1.6 GPF (Full), 0.8 GPF (Reduced); Maximum Static Pressure 80 PSI; Warranty Lifetime Limited
